The Engineering Log

Building in Public.

A transparent documentation of the roadblocks, memory leaks, and brutal constraints faced while building AROM Labs.

Phase 1: Orchestration

AI Pipeline Saturation

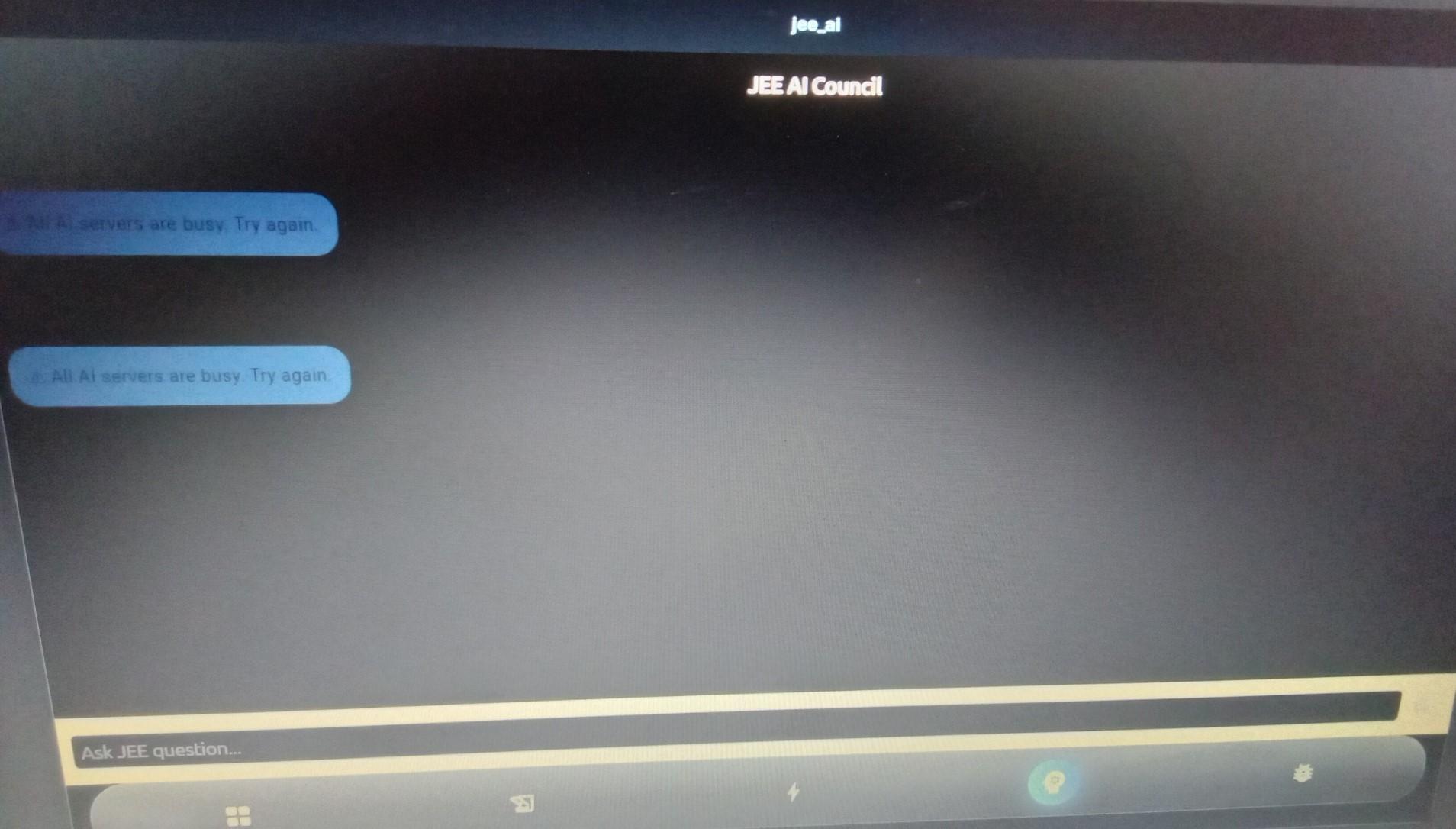

Chat interface showing All AI servers are busy error

The Problem

During heavy prompt routing, the API hit rate limits and threw 'All AI servers are busy' errors, completely halting the student's workflow.

The Execution & Fix

Built a robust fallback matrix. If the primary model pipeline saturates, requests are automatically routed to secondary edge functions, coupled with exponential backoff retries.

Phase 2: API Contracts

API Contract Drift

Dashboard UI showing API request failure

The Problem

A backend schema change broke front-end expectations, causing silent failures while payload validation was missing.

The Execution & Fix

Introduced a typed API contract layer, strict contract checks, and runtime validation on response objects before rendering.

Phase 3: UI Regression

Legacy UI Regression

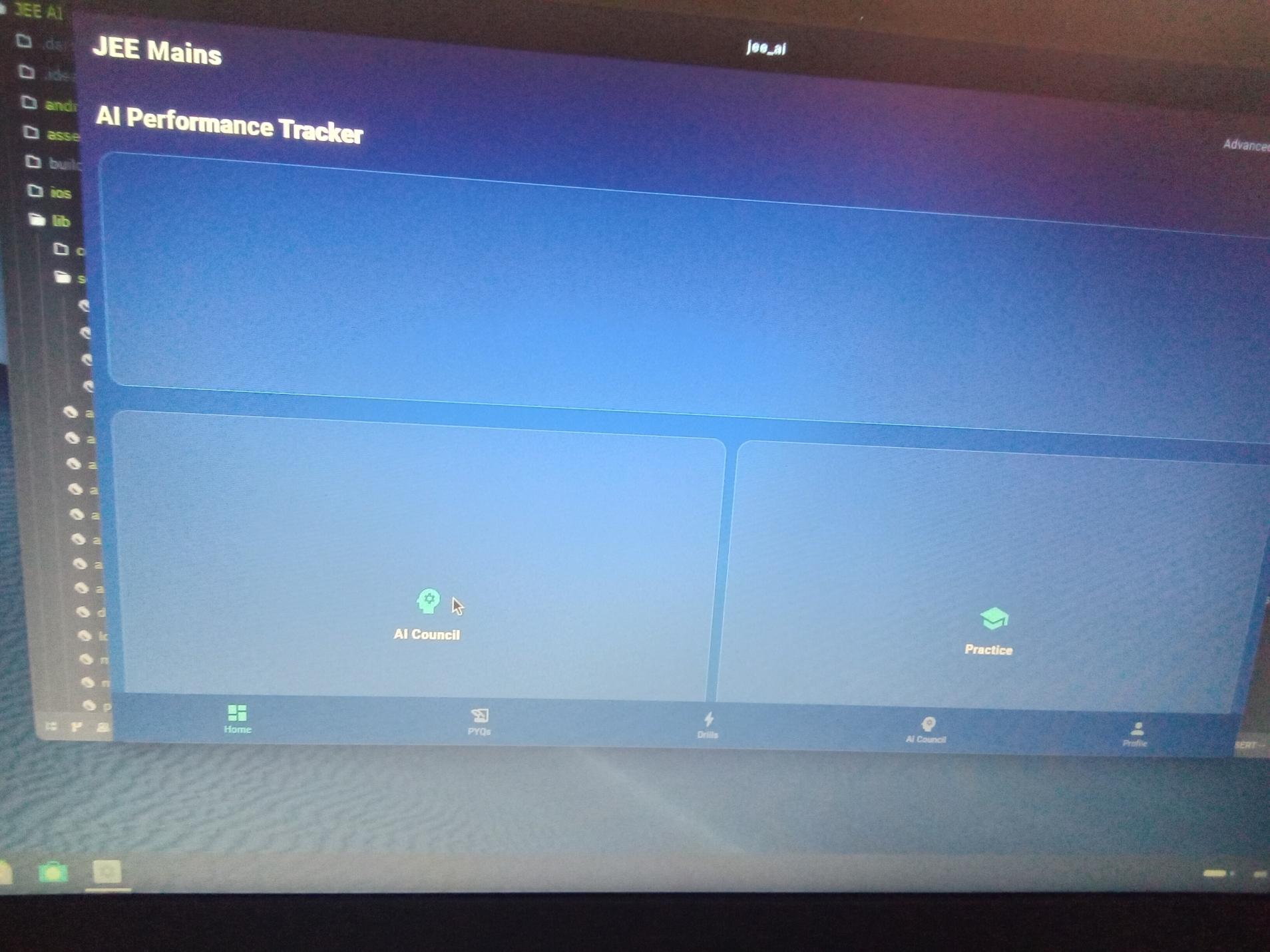

Cluttered legacy UI layout issue

The Problem

A small style change caused a previously stable component to render incorrectly on mobile, producing a broken and clunky interface.

The Execution & Fix

Refactored the component into a modular design system and added visual regression tests for low-end browsers.

Phase 4: Loading Flow

Content Loading Error

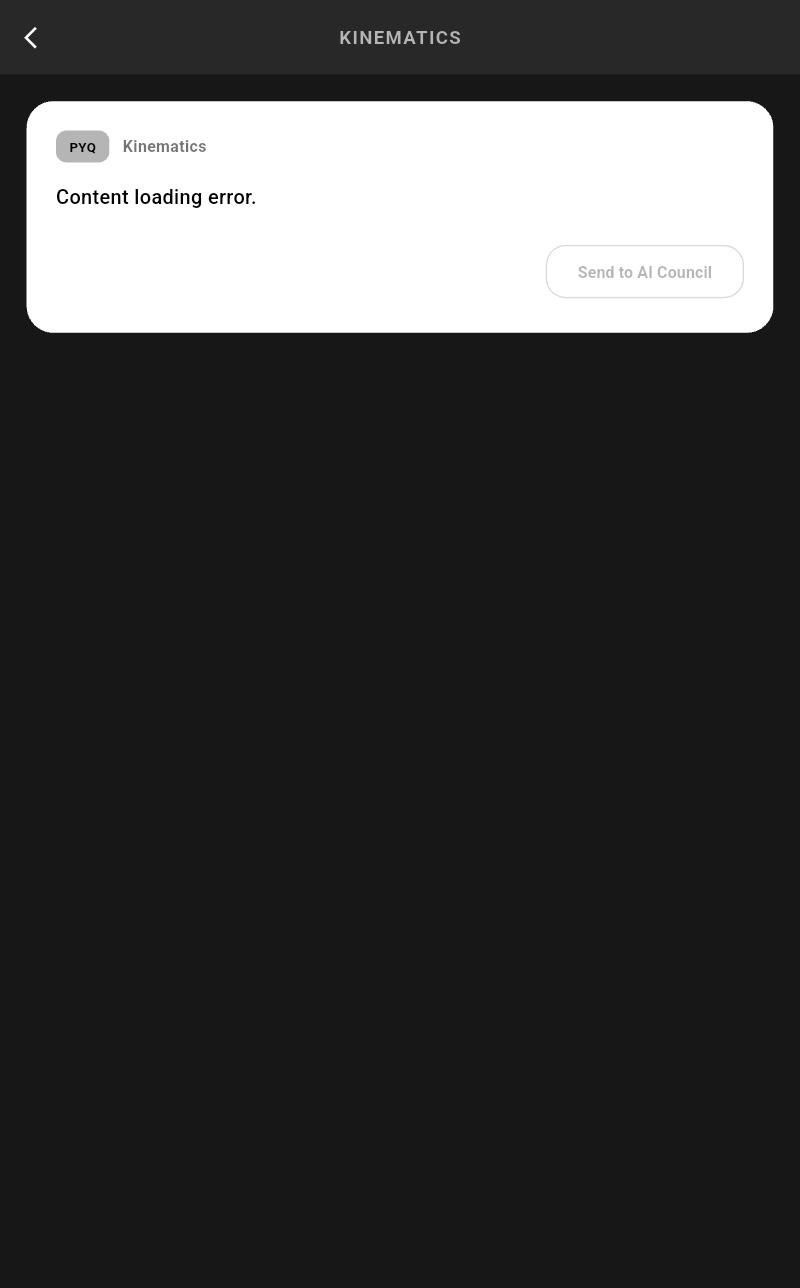

UI showing content loading error and placeholder state

The Problem

Large content blocks failed to hydrate properly, which left users staring at endless placeholders instead of actual material.

The Execution & Fix

Improved the loading state architecture and ensured that content loaded incrementally with safe fallbacks for missing data.

Phase 5: Runtime Stalls

Infinite Spinner Loop

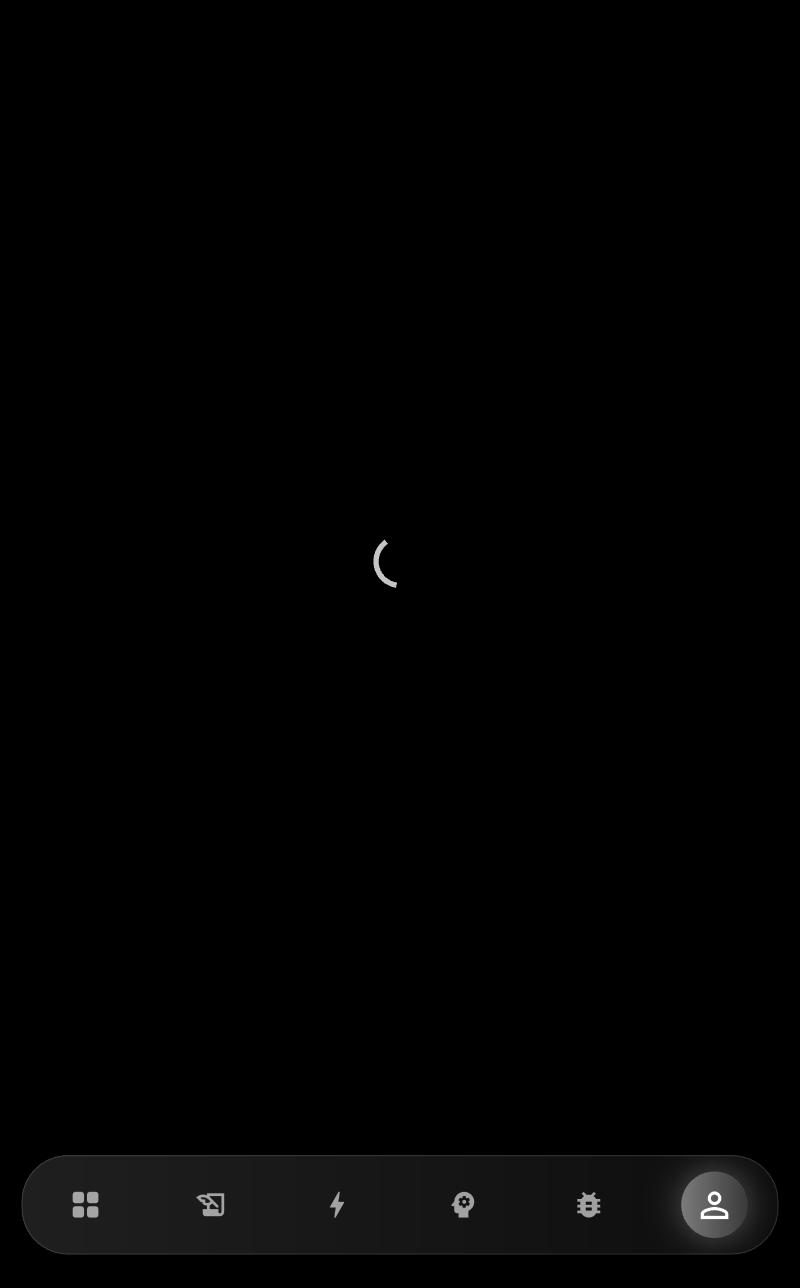

Loading spinner stuck in an infinite loop

The Problem

A race condition caused the page to get stuck on an animated spinner while waiting for a failed network request.

The Execution & Fix

Added timeout handling, request cancellation, and meaningful error states instead of endless loading states.

Phase 6: Parsing & Formatting

Tokenization Engine Failure

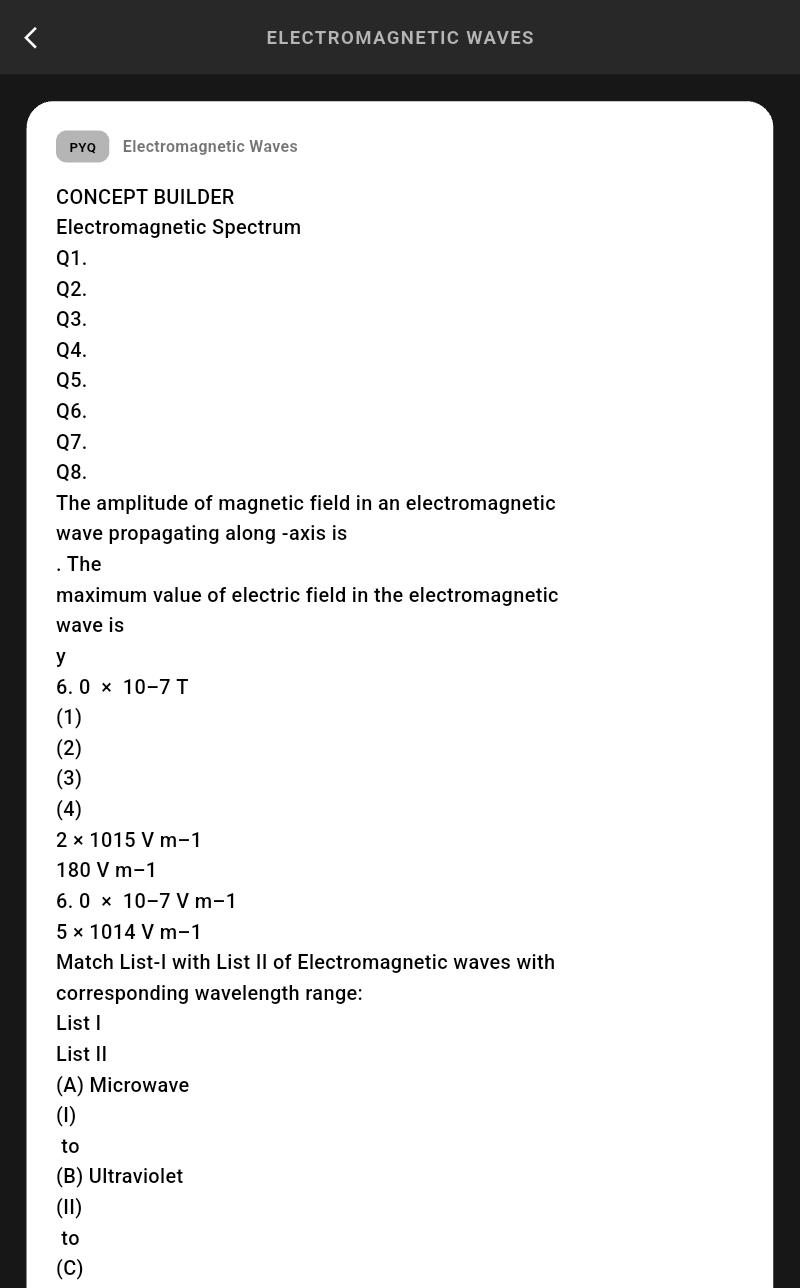

Raw unformatted text dump on physics question

The Problem

Physics questions (like Electromagnetic Waves) failed to parse correctly, dumping raw, unformatted text strings onto the screen instead of structured UI blocks.

The Execution & Fix

Built a custom text parser to intercept the raw LLM string stream, isolating structural blocks and injecting them into a dedicated rendering engine before it hits the UI.

Phase 7: Low-End Stability

OS Crash on Low-End Devices

Mobile device showing application crash screen

The Problem

The app crashed on slow Android hardware because a single heavy rendering path exhausted system resources.

The Execution & Fix

Optimized rendering, reduced memory overhead, and added fail-safe rendering paths for constrained devices.

Phase 8: Latency

Backend Response Delay

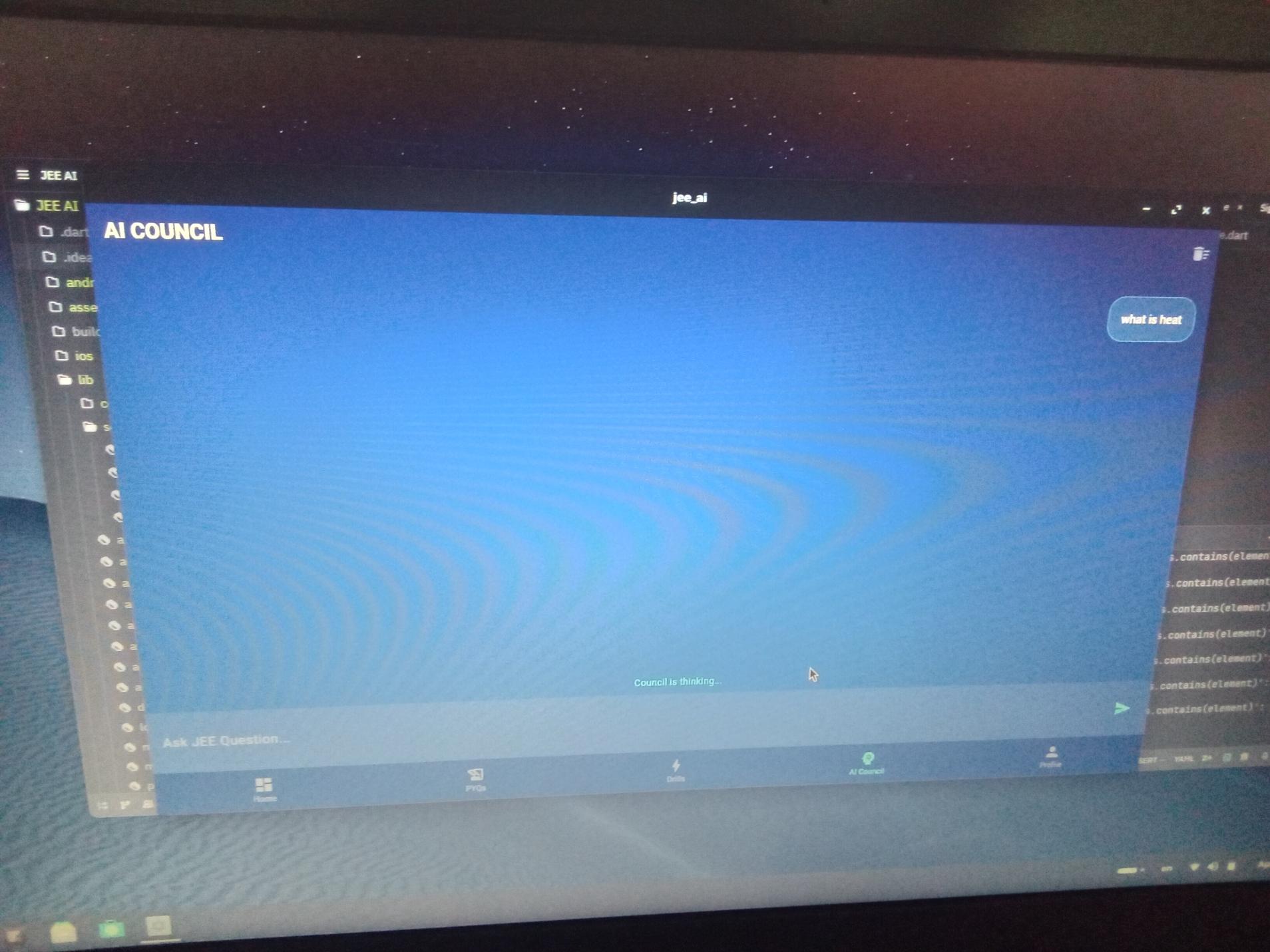

Dashboard showing slow response and loading delay

The Problem

Slow backend responses caused the interface to freeze and made the user experience feel unresponsive.

The Execution & Fix

Implemented progressive loading, local caching, and request batching to hide latency from the user.

Phase 9: Architecture

Supabase Initialization Crash

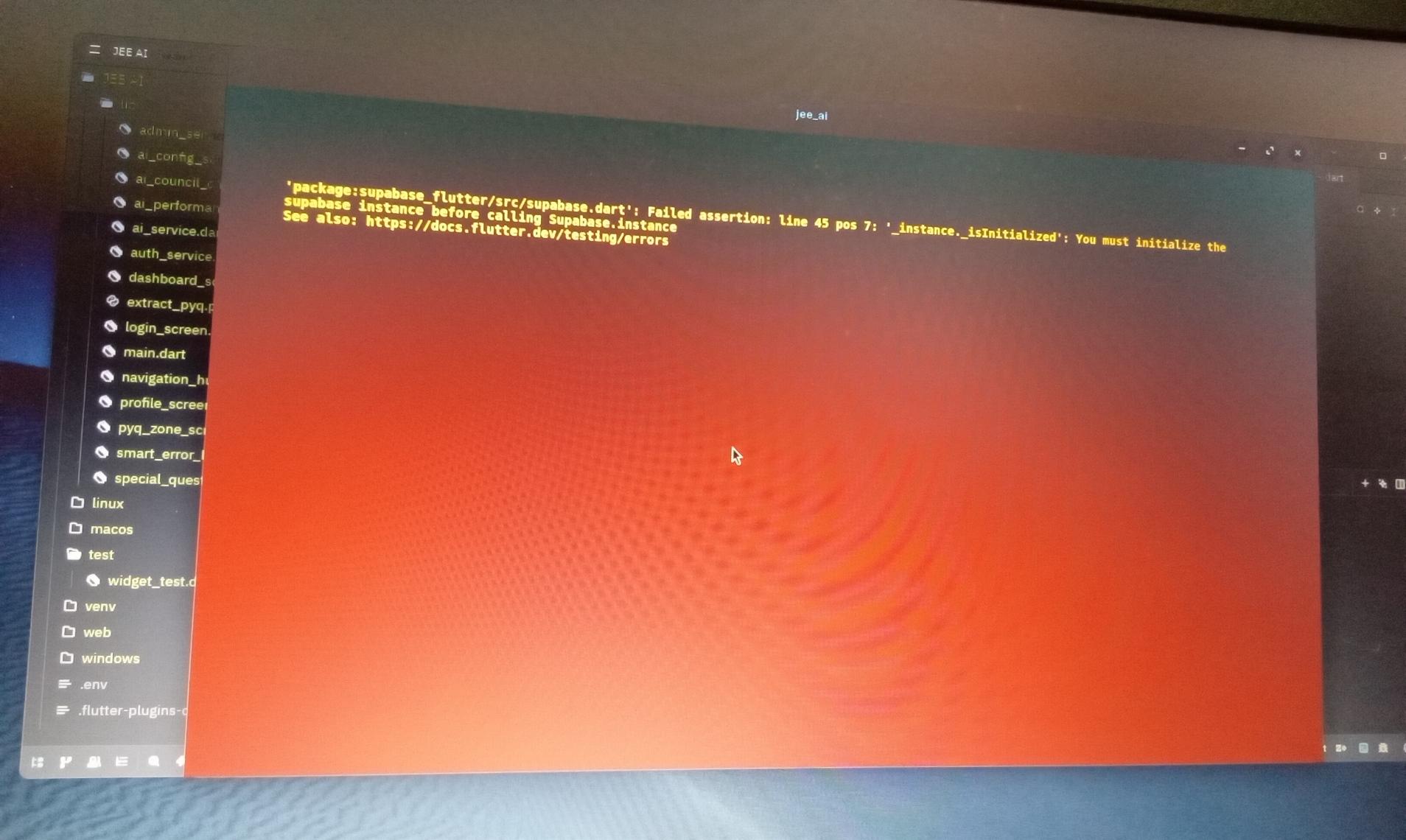

Flutter RSOD showing Supabase initialization error

The Problem

The classic Flutter Red Screen of Death. The application tried to call the backend instance before the asynchronous initialization sequence had completed during app launch.

The Execution & Fix

Rewrote the main asynchronous bootstrapping sequence. Enforced strict dependency injection and awaited all backend infrastructure before painting the first UI pixel.

Phase 10: Database Security

RLS Storage 403

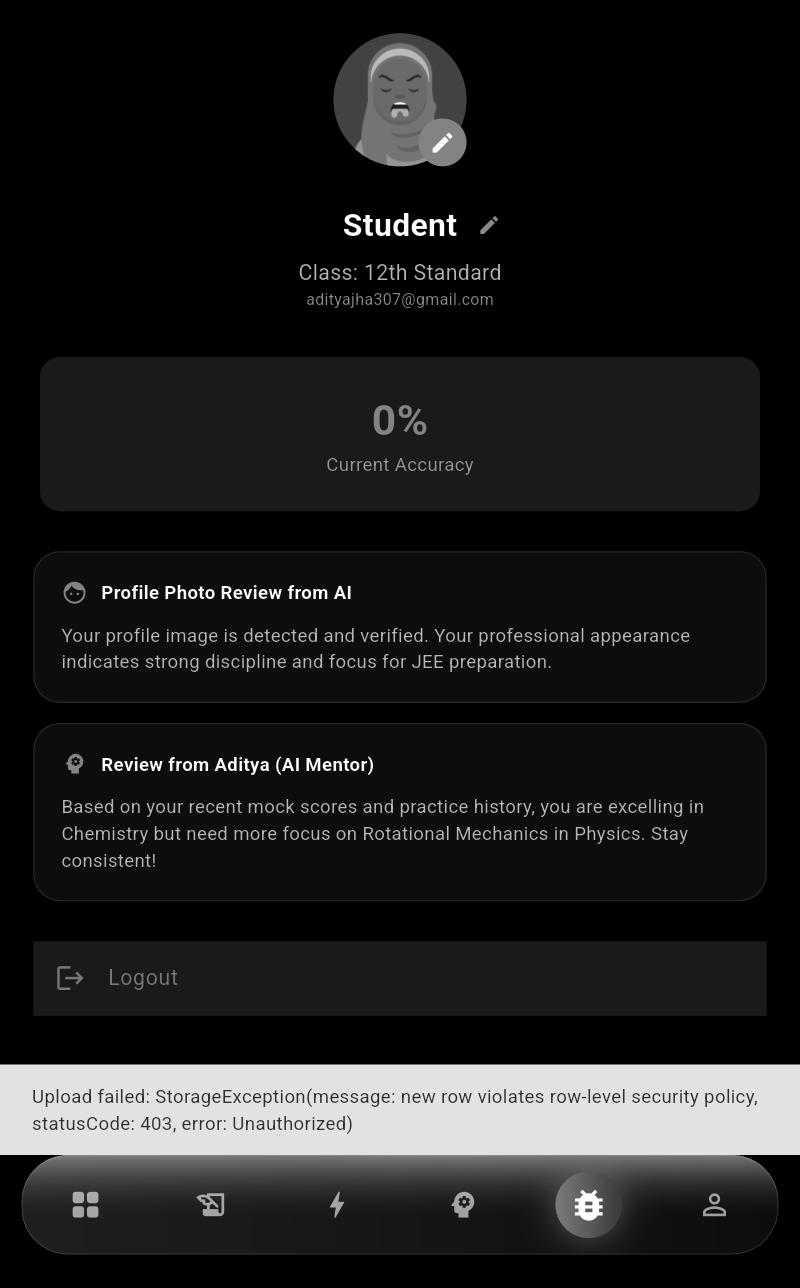

Profile UI showing 403 Unauthorized storage exception

The Problem

When attempting to upload profile avatars, Supabase threw a hard '403 Unauthorized' StorageException because Row-Level Security policies were too restrictive.

The Execution & Fix

Audited the Postgres database and wrote custom SQL policies to verify auth.uid() against the storage bucket path, securing uploads while keeping them functional.

Phase 11: Front-End Execution

WebView Disconnect

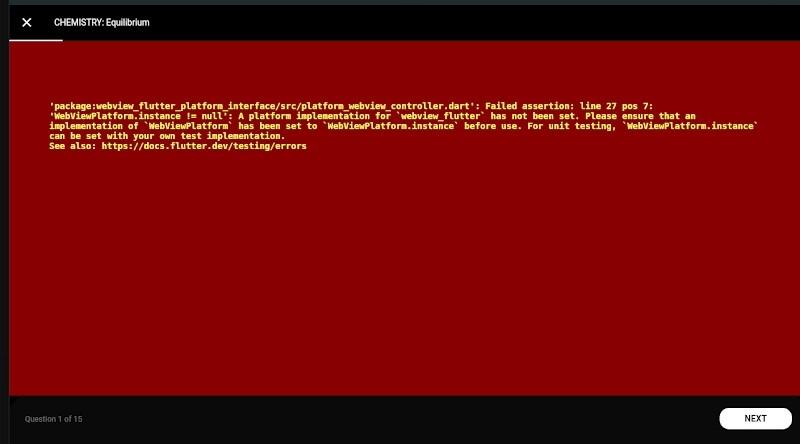

Flutter RSOD showing WebViewPlatform assertion error

The Problem

When rendering complex Chemistry and Kinematics questions, the Flutter WebView plugin crashed with a 'WebViewPlatform.instance != null' error because the platform-specific implementation wasn't registered.

The Execution & Fix

Manually registered the SurfaceAndroidWebView engine for Android builds and established fallback web routing to ensure complex equations rendered without crashing the app shell.

Phase 12: Regression

White WebView Regression

Blank white WebView regression screen

The Problem

A thin edge case caused the WebView to render a blank white frame instead of the expected interactive content.

The Execution & Fix

Added a monitoring hook and fallback UI so that the WebView gracefully recovers without destroying the session.

Phase 13: Widget Boot

Widget Initialization Failure

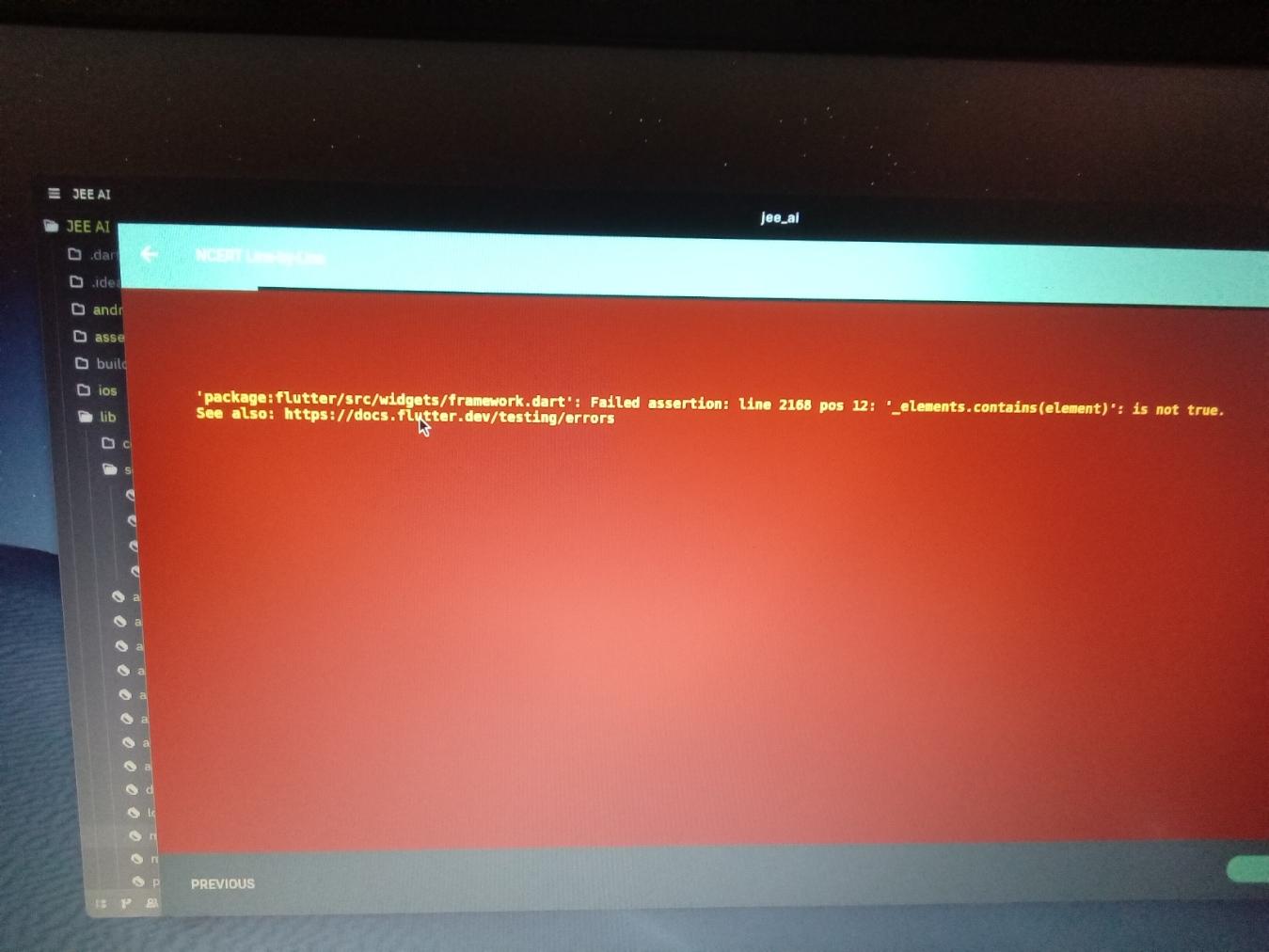

UI widget failing to initialize on screen

The Problem

A dynamic widget failed to initialize correctly because its dependencies were loaded out of order.

The Execution & Fix

Introduced a dependency resolver and a lazy initialization flow to ensure widgets only mount after all required services are ready.

Phase 14: UI/UX Refinement

Early UI & Graphic Bloat

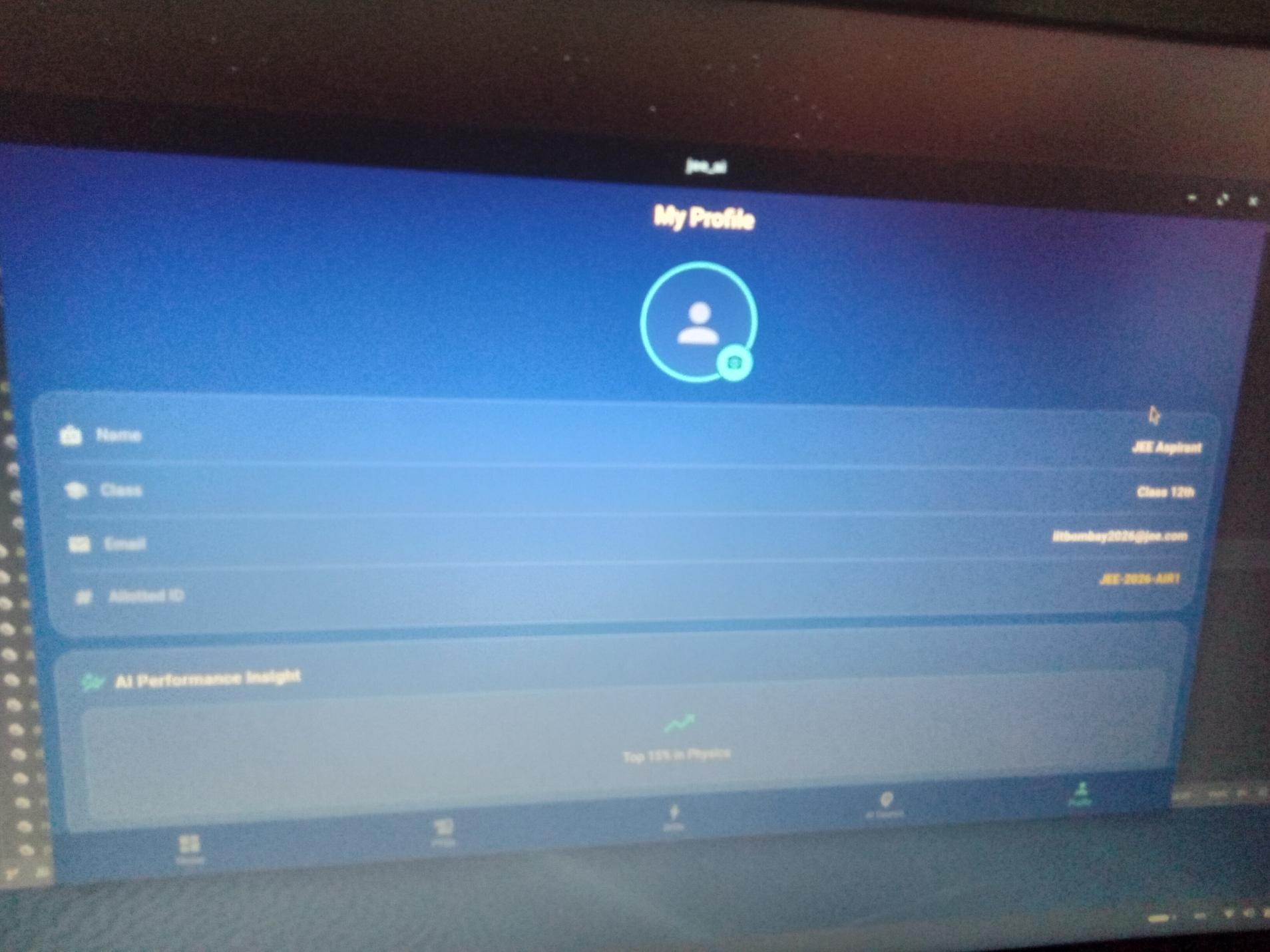

Old clunky blue profile UI

The Problem

The initial profile dashboard was a cluttered, blue-gradient nightmare. It looked cheap and consumed unnecessary rendering resources on budget devices.

The Execution & Fix

Scrapped the entire design system. Pivoted to the brutalist, minimalist dark-mode glassmorphism we use today. High contrast, pure utility, zero bloat.
